1. Unique linear actuator: cleverly designed with four axis joint mechanism, making the action program of therobotic arm simpler and control more precise.
2. Energy saving and environmentally friendly robotic arm design: High strength and reasonable production notonly make arm movements more flexible, but also reduce energy consumption.3. Simple teaching assignments and friendly graphical operation interface: With fewer teaching positions and asimple operation interface, on-site debugging is easier and on-site efficiency is greatly improved.4. Real time on-site monitoring: A high-precision on-site action simulation software that can remotely monitorwhether the program on site is operating normally, and automatically interfere with monitoring to avoid interferenceand collision.
5. Pre layout on-site simulation: By using powerful 3D simulation/programming software, a series of tasks suchas robot programming, layout, interference monitoring, and on-site action simulation can be easily and effectivelycompleted in the office, greatly reducing on-site debugging time and improving overall production eficiency.

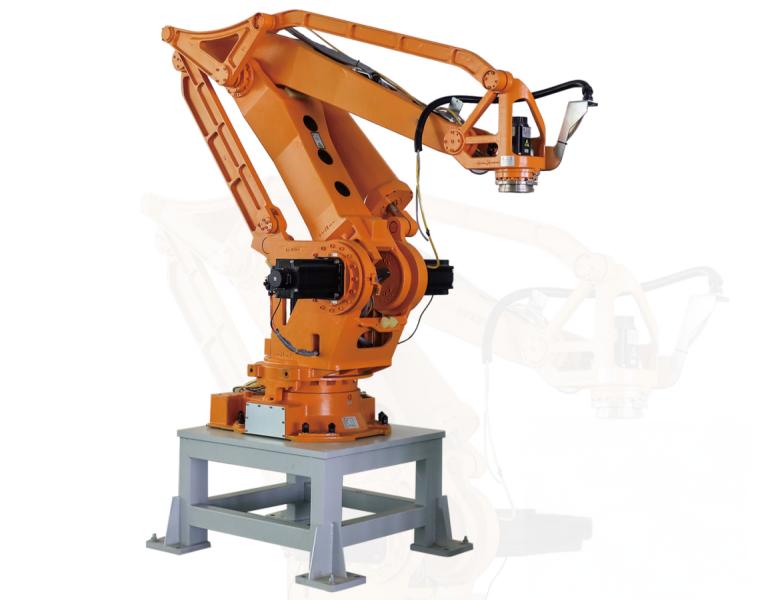

| Model | JYR130-4-2800 |
| Mechanism | Multi joint robot |
| Number of axes | 4 |
| Wrist can handle loads | 130KG |
| Repetitive positioning accuracy | ±0.3mm |
| Body weight | 970KG |
| Maximum arm span | 2800mm |
| Body protection level | IP40 |
| Protection level of electrical cabinet | IP43 |
