In the manufacturing industry, unpacking of soft packaging has always been a labor-intensive and high cost process. The large weight and quantity of goods, coupled with the three shift work mode, result in high labor costs. At the same time, problems such as difficulty in recruiting workers and poor working environments are also troubling many enterprises. A well-known large home appliance manufacturing enterprise is also facing these challenges. In order to break through the situation, it has reached a cooperation with Luowei Technology and introduced an innovative AI+3D visual guidance soft package unpacking solution.
Project pain points
Oversized stack type: The project site needs to handle oversized stack types (2m * 2m * 2.3m), which cannot be met by conventional solutions, posing severe challenges to the design of the solution and camera functionality
Space limitations: The limited space on site places higher demands on equipment installation, layout, and later operation and maintenance
Environmental light interference: There is a skylight on the top, which causes sunlight scattering and significant environmental light interference, seriously affecting visual recognition, positioning accuracy, and stable operation
High cost-effectiveness challenge: Customers have strict requirements for the cost-effectiveness of projects, which requires us to strictly control costs and maximize benefits while ensuring stable and reliable system performance
Core components
3D ToF camera
✔ Detection distance: 0.4-5m
✔ Field of view angle (H * V): 70 ° * 50 °
✔ ToF resolution: 640 * 480 dpi
✔ RGB resolution: 1600 * 1200 dpi
✔ Distance measurement accuracy: ＜ 1% （@2m≤5mm）
Algorithm software
✔ Compatibility: Supports AI deep learning, model training, and can effectively recognize objects such as cardboard boxes, burlap bags, and metal bars
✔ Quick deployment: supports training with a small number of samples to adapt to new scenarios
✔ Light development: Supports universal algorithms and flexible calling of recognition, localization, and other algorithms
Project highlights
1. Meet the requirements of ultra large stack type and have a large field of view (3.5 * 2.2 * 2.3m), support dual stack deployment, and adaptive empty tray recognition

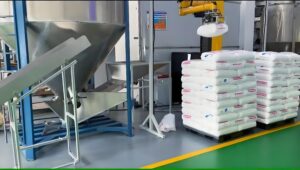

2. Paired with column robots, effectively reducing footprint and lowering costs, successfully meeting customer budgets
3. Rapid deployment, complete overall deployment in 3 days
4. In response to the on-site skylight situation, it has the ability to resist environmental light interference

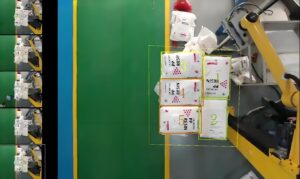

5. The capture recognition rate is as high as 99.9%, and the recognition rhythm is less than 3s
Advantages of Jieyu’s unpacking solution
1. Long distance and large field of view: Wide viewing angle (70 ° * 50 °), ultra large working distance (5m), easy to handle ultra-high and ultra large stack types (2m * 2m * 2.3m)
2. Flexible solution: Can be paired with various brands of robots (six axis, four axis, column), supporting flexible deployment of single/double workstations
3. Environmental adaptability: not afraid of environmental light interference, not afraid of factory lighting, ensuring operational stability and reliability
4. AI recognition: New materials are exempt from registration, supporting recognition of various soft packaging such as solid colors, complex patterns, deformations, wrinkles, etc., and supporting recognition of empty trays
5. Stack friendly: Suitable for typical stack types such as six flower stack, five flower stack, and circular stack
The cooperation between Jeyu and this well-known home appliance manufacturing enterprise not only brings practical production benefits, but also fully demonstrates Jeyu’s strong strength in the field of industrial automation. Against the backdrop of rising labor costs and difficulty in recruiting workers in the current manufacturing industry, Jeyu’s soft pack unpacking solution undoubtedly provides an efficient and flexible choice for the industry. In the future, Jeyu will continue to be committed to technological innovation and solution optimization, providing efficient and intelligent automation solutions for more enterprises.
